Problems with retrieving group calendars in PowerApps
I had a challenge recently where someone wanted to be able to show an Outlook calendar on a board with everyone's assignments on it. It sounded like a common thing to do but while there was the Journal view, that could only show a day or two at a time - they wanted to see what people were up to for that week. We tried a few different ideas but I kept coming back to PowerApps. I knew you could connect to Outlook so it seemed the right place to start and be able to customise without a full development project needed.

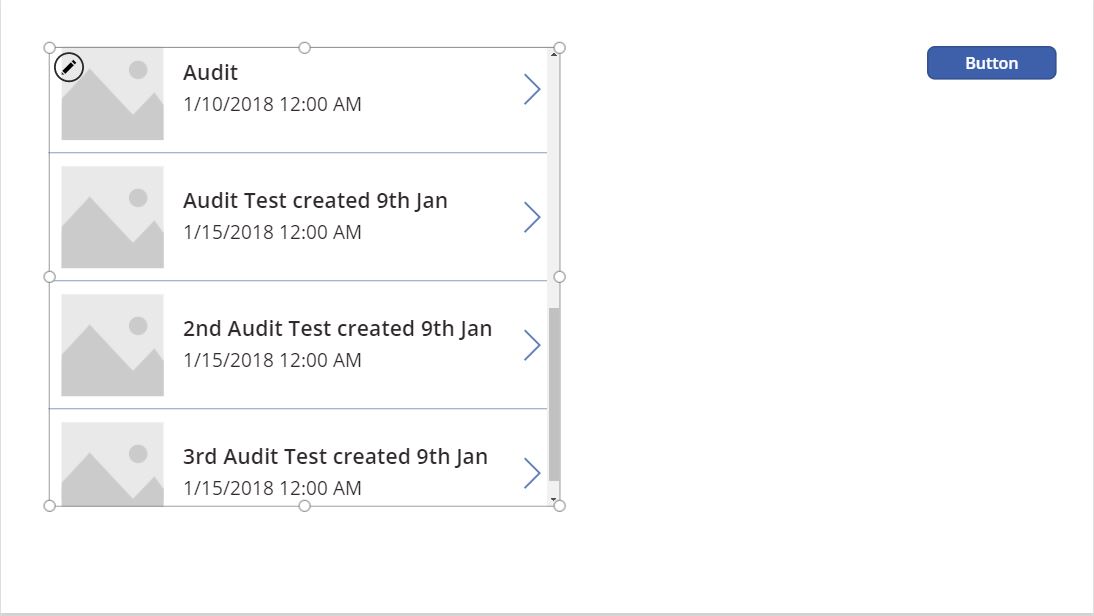

I started with pulling back my own calendar and had that showing nicely. I used the Office365 connector from the list of connectors. I added a gallery to show the items and then used ClearCollect to pull the data in to a collection that the gallery was linked to:
ClearCollect(CalItems, Office365.GetEventsCalendarViewV2("AQMkCDgyOTgxOTFlLWIxYTujNDgwMS04ZmQ0LWUwZmQ4Zjk0YWIzMABGAAAD2RtBjD8Jk0i4KA3NAvHSRAcAnklFNo4RR0yOoHVpIVJ1nQAAAgEGAAAAnklFNo7CC0yOoHVpIVJ1nQAAAhjZAAAA","2018-01-01","2018-02-01",{}).value)
So this was lovely and all worked. Next I thought, let's try with an Office 365 Group calendar.....hmmm, how would that work? I checked the Groups preview connector but there was no way to get a calendar. I used the Microsoft Graph Explorer to see if I could get an ID for the calendar in the graph but while I could get a Group ID, there was no way to get a calendar ID. However, in the graph API, I could see that you could return events for a group - bingo! Surely it would be easy to create a Swagger file for the graph using Postman (thanks to Software Simian aka Ross Smith). I did all this and created a custom connector with this in the PowerApps web version. Then I added this connector to my app and I had the events from the Group calendar. I was finished!....
...or so I thought. Because when I tried to filter the items by date to have a gallery per day, I found that it wasn't returning start or end date. With PowerApps now, you can view a collection so I had a look at the one I was returning.

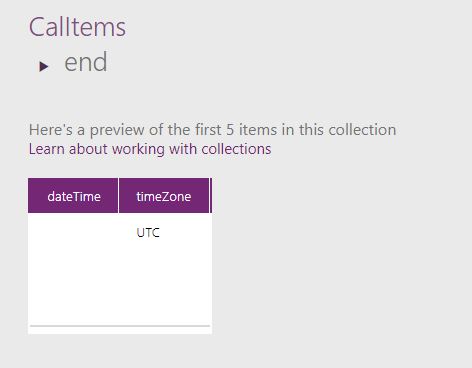

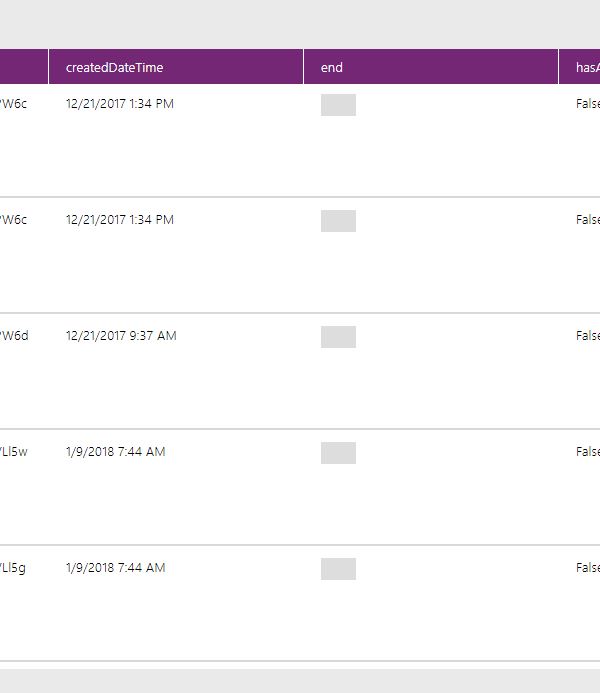

Created Date came back fine but the end date was an object so I went deeper:

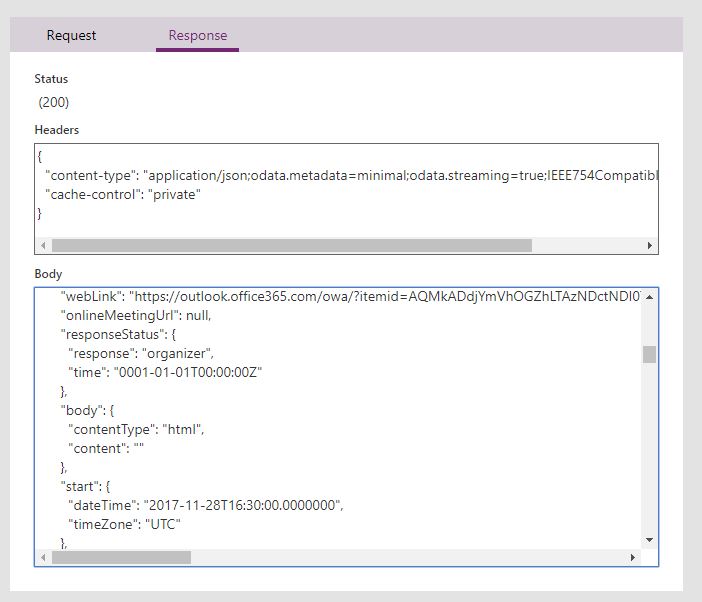

The timezone was coming back but no actual date. I went back to the Custom Connector and ran a test against the API:
The start dateTime was being returned but I noticed that it was in a different format and that is where I have hit the brick wall. I have tried changing the Swagger file to treat this as text but the schema validation fails saying that it found a datetime format instead. Marc La Fleur has kindly offered to take a look so this blog is largely for him to take a look but anyone else who has some ideas would be very welcome! Below is the Swagger file I used with the Group ID removed.
{
"swagger": "2.0",
"info": {
"version": "1.0.0",
"title": "ScheduleViewerGraphConnector",
"description": "ScheduleViewerGraphConnector"
},
"host": "graph.microsoft.com",
"basePath": "/",
"schemes": [
"https"
],
"consumes": [],
"produces": [
"application/json"
],
"paths": {
"/v1.0/groups/{GROUPID}/calendarview": {
"get": {
"summary": "GetEventsForGroup",
"description": "GetEventsForGroup",
"operationId": "GetEventsForGroup",
"parameters": [
{
"name": "startdatetime",
"default": "2016-11-04T14:03:33.42Z",
"in": "query",
"type": "string",
"required": true,
"x-ms-summary": "startdatetime"
},
{
"name": "enddatetime",
"default": "2017-12-03T14:03:33.42Z",
"in": "query",
"type": "string",
"required": true,
"x-ms-summary": "enddatetime"
}
],
"responses": {
"200": {
"description": "200",
"schema": {
"type": "object",
"properties": {
"@odata.context": {
"type": "string",
"description": "@odata.context",
"x-ms-summary": "@odata.context"
},
"value": {
"type": "array",
"items": {
"type": "object",
"properties": {
"@odata.etag": {
"type": "string",
"description": "@odata.etag",
"x-ms-summary": "@odata.etag"
},
"id": {
"type": "string",
"description": "id",
"x-ms-summary": "id"
},
"createdDateTime": {
"type": "string",
"format": "date-time",
"description": "createdDateTime",
"x-ms-summary": "createdDateTime"
},
"lastModifiedDateTime": {
"type": "string",
"format": "date-time",
"description": "lastModifiedDateTime",
"x-ms-summary": "lastModifiedDateTime"
},
"changeKey": {
"type": "string",
"description": "changeKey",
"x-ms-summary": "changeKey"
},
"categories": {
"type": "array",
"items": {
"type": "string"
},
"description": "categories",
"x-ms-summary": "categories"
},
"originalStartTimeZone": {
"type": "string",
"description": "originalStartTimeZone",
"x-ms-summary": "originalStartTimeZone"
},
"originalEndTimeZone": {
"type": "string",
"description": "originalEndTimeZone",
"x-ms-summary": "originalEndTimeZone"
},
"iCalUId": {
"type": "string",
"description": "iCalUId",
"x-ms-summary": "iCalUId"
},
"reminderMinutesBeforeStart": {
"type": "integer",
"format": "int32",
"description": "reminderMinutesBeforeStart",
"x-ms-summary": "reminderMinutesBeforeStart"
},
"isReminderOn": {
"type": "boolean",
"description": "isReminderOn",
"x-ms-summary": "isReminderOn"
},
"hasAttachments": {
"type": "boolean",
"description": "hasAttachments",
"x-ms-summary": "hasAttachments"
},
"subject": {
"type": "string",
"description": "subject",
"x-ms-summary": "subject"
},
"bodyPreview": {
"type": "string",
"description": "bodyPreview",
"x-ms-summary": "bodyPreview"
},
"importance": {
"type": "string",
"description": "importance",
"x-ms-summary": "importance"
},
"sensitivity": {
"type": "string",
"description": "sensitivity",
"x-ms-summary": "sensitivity"
},
"isAllDay": {
"type": "boolean",
"description": "isAllDay",
"x-ms-summary": "isAllDay"
},
"isCancelled": {
"type": "boolean",
"description": "isCancelled",
"x-ms-summary": "isCancelled"
},
"isOrganizer": {
"type": "boolean",
"description": "isOrganizer",
"x-ms-summary": "isOrganizer"
},
"responseRequested": {
"type": "boolean",
"description": "responseRequested",
"x-ms-summary": "responseRequested"
},
"seriesMasterId": {
"type": "string",
"description": "seriesMasterId",
"x-ms-summary": "seriesMasterId"
},
"showAs": {
"type": "string",
"description": "showAs",
"x-ms-summary": "showAs"
},
"type": {
"type": "string",
"description": "type",
"x-ms-summary": "type"
},
"webLink": {
"type": "string",
"description": "webLink",
"x-ms-summary": "webLink"
},
"onlineMeetingUrl": {
"type": "string",
"description": "onlineMeetingUrl",
"x-ms-summary": "onlineMeetingUrl"
},
"responseStatus": {
"type": "object",
"properties": {
"response": {
"type": "string",
"description": "response",
"x-ms-summary": "response"
},
"time": {
"type": "string",
"format": "date-time",
"description": "time",
"x-ms-summary": "time"
}
},
"description": "responseStatus",
"x-ms-summary": "responseStatus"
},
"body": {
"type": "object",
"properties": {
"contentType": {
"type": "string",
"description": "contentType",
"x-ms-summary": "contentType"
},
"content": {
"type": "string",
"description": "content",
"x-ms-summary": "content"
}
},
"description": "body",
"x-ms-summary": "body"
},
"start": {
"type": "object",
"properties": {
"dateTime": {
"type": "string",
"format": "date-time",
"description": "dateTime",
"x-ms-summary": "dateTime"
},
"timeZone": {
"type": "string",
"description": "timeZone",
"x-ms-summary": "timeZone"
}
},
"description": "start",
"x-ms-summary": "start"
},
"end": {
"type": "object",
"properties": {
"dateTime": {
"type": "string",
"format": "date-time",
"description": "dateTime",
"x-ms-summary": "dateTime"
},
"timeZone": {
"type": "string",
"description": "timeZone",
"x-ms-summary": "timeZone"
}
},
"description": "end",
"x-ms-summary": "end"
},
"location": {
"type": "object",
"properties": {
"displayName": {
"type": "string",
"description": "displayName",
"x-ms-summary": "displayName"
},
"address": {
"type": "object",
"properties": {},
"description": "address",
"x-ms-summary": "address"
}
},
"description": "location",
"x-ms-summary": "location"
},
"recurrence": {
"type": "string",
"description": "recurrence",
"x-ms-summary": "recurrence"
},
"attendees": {
"type": "array",
"items": {
"type": "object",
"properties": {
"type": {
"type": "string",
"description": "type",
"x-ms-summary": "type"
},
"status": {
"type": "object",
"properties": {
"response": {
"type": "string",
"description": "response",
"x-ms-summary": "response"
},
"time": {
"type": "string",
"format": "date-time",
"description": "time",
"x-ms-summary": "time"
}
},
"description": "status",
"x-ms-summary": "status"
},
"emailAddress": {
"type": "object",
"properties": {
"name": {
"type": "string",
"description": "name",
"x-ms-summary": "name"
},
"address": {
"type": "string",
"description": "address",
"x-ms-summary": "address"
}
},
"description": "emailAddress",
"x-ms-summary": "emailAddress"
}
}
},
"description": "attendees",
"x-ms-summary": "attendees"
},
"organizer": {
"type": "object",
"properties": {
"emailAddress": {
"type": "object",
"properties": {
"name": {
"type": "string",
"description": "name",
"x-ms-summary": "name"
},
"address": {
"type": "string",
"description": "address",
"x-ms-summary": "address"
}
},
"description": "emailAddress",
"x-ms-summary": "emailAddress"
}
},
"description": "organizer",
"x-ms-summary": "organizer"
}
}
},
"description": "value",
"x-ms-summary": "value"
}
}
}
}
}
}
},
"/v1.0/me/memberOf": {
"get": {
"summary": "GetGroups",
"description": "GetGroups",
"operationId": "GetGroups",
"parameters": [],
"responses": {
"default": {
"description": "default",
"schema": {
"type": "string"
}
}
}
}
},
"/v1.0/groups/{GROUPID}/calendar/events": {
"post": {
"summary": "CreateEvent",
"description": "CreateEvent",
"operationId": "CreateEvent",
"parameters": [
{
"name": "Content-Type",
"in": "header",
"required": true,
"type": "string",
"default": " application/json",
"description": "Content-Type",
"x-ms-summary": "Content-Type"
},
{
"name": "body",
"in": "body",
"schema": {
"type": "object",
"properties": {
"subject": {
"type": "string",
"description": "subject",
"x-ms-summary": "subject"
},
"isAllDay": {
"type": "boolean",
"description": "isAllDay",
"x-ms-summary": "isAllDay"
},
"body": {
"type": "object",
"properties": {
"contentType": {
"type": "string",
"description": "contentType",
"x-ms-summary": "contentType"
},
"content": {
"type": "string",
"description": "content",
"x-ms-summary": "content"
}
},
"description": "body",
"x-ms-summary": "body"
},
"start": {
"type": "object",
"properties": {
"dateTime": {
"type": "string",
"format": "date-time",
"description": "dateTime",
"x-ms-summary": "dateTime"
},
"timeZone": {
"type": "string",
"description": "timeZone",
"x-ms-summary": "timeZone"
}
},
"description": "start",
"x-ms-summary": "start"
},
"end": {
"type": "object",
"properties": {
"dateTime": {
"type": "string",
"format": "date-time",
"description": "dateTime",
"x-ms-summary": "dateTime"
},
"timeZone": {
"type": "string",
"description": "timeZone",
"x-ms-summary": "timeZone"
}
},
"description": "end",
"x-ms-summary": "end"
},
"location": {
"type": "object",
"properties": {
"displayName": {
"type": "string",
"description": "displayName",
"x-ms-summary": "displayName"
}
},
"description": "location",
"x-ms-summary": "location"
},
"attendees": {
"type": "array",
"items": {
"type": "object",
"properties": {
"emailAddress": {
"type": "object",
"properties": {
"address": {
"type": "string",
"description": "address",
"x-ms-summary": "address"
},
"name": {
"type": "string",
"description": "name",
"x-ms-summary": "name"
}
},
"description": "emailAddress",
"x-ms-summary": "emailAddress"
},
"type": {
"type": "string",
"description": "type",
"x-ms-summary": "type"
}
}
},
"description": "attendees",
"x-ms-summary": "attendees"
}
},
"default": {
"subject": "Test",
"isAllDay": true,
"body": {
"contentType": "HTML",
"content": "Test"
},
"start": {
"dateTime": "2017-12-04T00:00:00",
"timeZone": "GMT"
},
"end": {
"dateTime": "2017-12-05T00:00:00",
"timeZone": "GMT"
},
"location": {
"displayName": "Test"
},
"attendees": [
{
"emailAddress": {
"address": "andrew@bcmcd.onmicrosoft.com",
"name": "Andrew Chalmers"
},
"type": "required"
}
]
}
},
"required": true
}
],
"responses": {
"default": {
"description": "default",
"schema": {
"type": "string"
}
}
}
}
}
},
"definitions": {},
"parameters": {},
"responses": {},
"securityDefinitions": {
"OAuth": {
"type": "oauth2",
"authorizationUrl": "https://login.windows.net/common/oauth2/authorize",
"tokenUrl": "https://your.token.url/here",
"flow": "accessCode"
}
},
"security": [
{}
],
"tags": []
}
